Casting & Foundry Cylinders

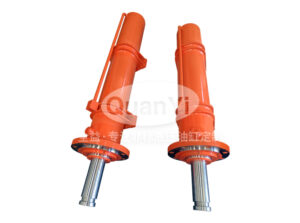

600T Pattern Stripping Machine Two-Stage Push-Pull Cylinder 180/150/125/90-1593 180/150/125/90-1593

600T Pattern Strip…

OEM / ODM available View Details →

Casting & Foundry Cylinders

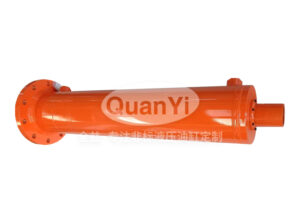

Pattern Stripping Machine Core Cylinder 160/90-670 160/90-670

Pattern Stripping …

OEM / ODM available View Details →

Casting & Foundry Cylinders

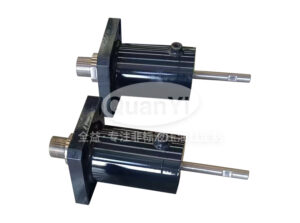

Foundry Ejector Cylinder 160/110-100 160/110-100

Foundry Ejector Cy…

OEM / ODM available View Details →

Casting & Foundry Cylinders

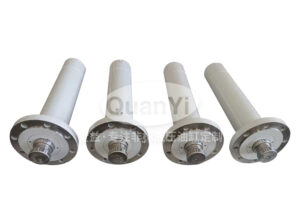

Mold Closing Cylinder 90/63-300 90/63-300

Mold Closing Cylin…

OEM / ODM available View Details →

Casting & Foundry Cylinders

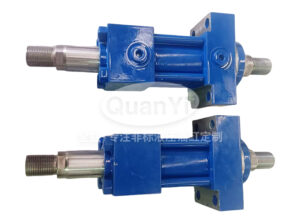

Foundry Double-Rod Positioning Cylinder 50/36-40 50/36-40

Foundry Double-Rod…

OEM / ODM available View Details →

Casting & Foundry Cylinders

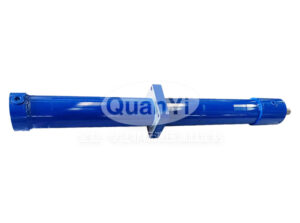

Foundry Equipment Hydraulic Cylinder 100/60-1000 100/60-1000

Foundry Equipment …

OEM / ODM available View Details →

Casting & Foundry Cylinders

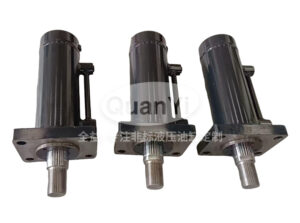

Foundry Side Mold Cylinder 100/56-200 100/56-200

Foundry Side Mold …

OEM / ODM available View Details →

Casting & Foundry Hydraulic Cylinders — Die Casting, Sand Casting OEM China

Hengshui Machinery manufactures hydraulic cylinders for the casting and foundry sector: die casting machines, centrifugal casting systems, gravity casting equipment, sand casting shake-out rigs, core blowers, and heat treatment furnace doors. Foundry cylinders are exposed to thermal cycling, metal splash, lubricant mist, and abrasive sand or particulate contamination — all of which accelerate normal cylinder wear if the design is not adapted accordingly.

For die casting machine applications, we supply shot cylinders, toggle clamp cylinders, and ejector cylinders with heat-resistant FKM seals and special rod coating arrangements to handle the high ambient temperatures. For sand casting shake-out and core blowing equipment, heavy-duty multi-lip dust wipers and stainless internal components resist the abrasive environment. All foundry cylinders are hydrostatic pressure tested and issued with full quality documentation.

Parameter	Specification
Bore range	Ø50 mm – Ø500 mm
Stroke range	50 mm – 3,000 mm
Working pressure	160 – 315 bar
Seal compound	FKM (heat-resistant) standard; PTFE for chemical environments
Rod coating	Hard chrome; optional thermal-spray ceramic for die casting ambient
Wiper seal	Heavy-duty multi-lip PU — excludes sand, metal chip, lubricant
Temperature	Up to +150°C continuous (FKM seal); thermal-barrier end cap option
Surface coating	High-temp epoxy paint; aluminium end caps option for weight saving

Casting & Foundry Cylinder Applications

Die casting machine shot cylinder

High-velocity shot cylinders for cold-chamber and hot-chamber die casting machines. Bore Ø80–Ø200 mm; fast injection speed; FKM seals; thermal barrier between cylinder and die.

Die casting machine toggle clamping

High-force toggle drive cylinders for die casting machine clamping units. Bore Ø150–Ø400 mm; very high clamping force with compact cylinder stroke.

Die casting machine ejector cylinders

Compact, high-force ejector cylinders for part extraction. High-cycle; must operate reliably in proximity to the die casting shot zone.

Centrifugal casting machines

Cylinders for mould clamping, pouring lip actuation, and cooling water valve control on horizontal and vertical centrifugal casting machines.

Gravity and low-pressure die casting

Cylinders for mould opening and closing, core pull, and riser control on gravity die casting and low-pressure casting machines.

Sand casting shake-out and core blower

Cylinders for vibrating grid shake-out drives, cooling drum drive, and core blower inlet valve actuation. Heavy-duty dust-resistant sealing essential.

Heat treatment furnace door cylinders

High-temperature cylinders for lifting, sliding, and swinging furnace doors on batch and continuous heat treatment furnaces. FKM seals; thermal insulation of cylinder body.

ISO 9001:2015 Certified

Wuxi, Jiangsu, China — Factory Direct

24 h Quote · MOQ 1 Piece · OEM/ODM
