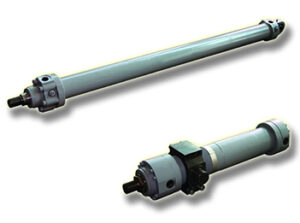

CDLI Series Engineering Hydraulic Cylinder

CDLI Series Engine…

OEM / ODM available View Details →

Engineering & Construction Cylinders

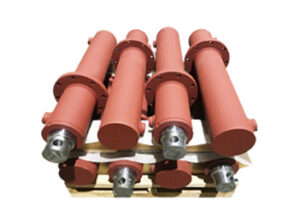

HSG Series Engineering Hydraulic Cylinder

HSG Series Enginee…

OEM / ODM available View Details →

Engineering & Construction Cylinders

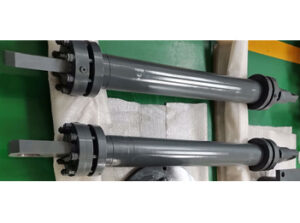

Aerial Work Platform Hydraulic Cylinder

Aerial Work Platfo…

OEM / ODM available View Details →

Engineering & Construction Cylinders

Concrete Pump Truck Hydraulic Cylinder

Concrete Pump Truc…

OEM / ODM available View Details →

Engineering & Construction Cylinders

Spider Lift Hydraulic Cylinder

Spider Lift Hydrau…

OEM / ODM available View Details →

Engineering & Construction Cylinders

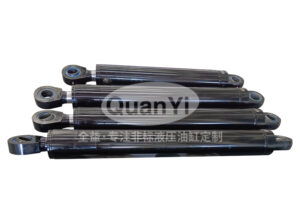

Engineering Machinery Secondary Arm Cylinder 125/70-990 125/70-990

Engineering Machin…

OEM / ODM available View Details →

Engineering & Construction Cylinders

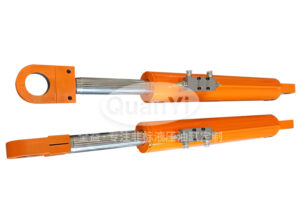

Engineering Machinery Extractor Arm Cylinder 110/63-527 110/63-527

Engineering Machin…

OEM / ODM available View Details →

Engineering & Construction Cylinders

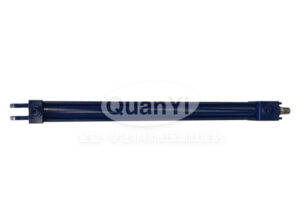

Engineering Hydraulic Cylinder 32/22-440 32/22-440

Engineering Hydrau…

OEM / ODM available View Details →

Engineering & Construction Cylinders

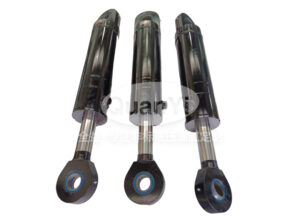

Engineering Machinery Main Boom Cylinder 150/75-419 150/75-419

Engineering Machin…

OEM / ODM available View Details →

Engineering & Construction Cylinders

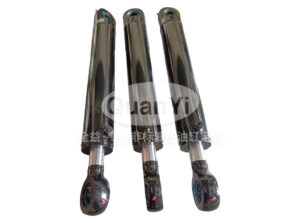

Rock Crusher Secondary Arm Cylinder 125/70-722 125/70-722

Rock Crusher Secon…

OEM / ODM available View Details →

Engineering & Construction Hydraulic Cylinders — TBM, Excavator, Pile Driver OEM

Hengshui Machinery manufactures hydraulic cylinders for civil engineering, infrastructure, and construction machinery: tunnel boring machines (TBM), micro-tunnelling machines, pipe jacking systems, excavators, road rollers, piling rigs, motor graders, and bridge construction equipment. Engineering and construction cylinders typically operate in harsh outdoor environments with high levels of contamination, shock loading, and wide temperature cycles.

Our engineering cylinders are built for long service life in difficult conditions. We select heavy-duty wiper seals, stainless steel or chrome-plated rods, robust end caps with external protective coatings, and specify bore tubes of appropriate wall thickness for the buckling loads common in long-stroke excavator or piling applications. OEM manufacturing from machine builder drawings is our primary mode — we hold NDA agreements with multiple major OEM customers globally.

Parameter	Specification
Bore range	Ø40 mm – Ø500 mm
Stroke range	200 mm – 8,000 mm
Working pressure	210 – 350 bar
Wiper seals	Heavy-duty polyurethane multi-lip — excludes mud, debris, water
Rod coating	Hard chrome 25–50 µm; optional ceramic chrome for extreme abrasion
Mounting	Pin eye, clevis, trunnion, flange — all orientations
Paint system	Zinc-rich primer + epoxy topcoat + polyurethane finish; custom colour match
Test	Pressure tested 1.5× working pressure; stroke cycle tested before despatch

Engineering & Construction Cylinder Applications

Tunnel boring machine (TBM) thrust cylinders

The largest engineering cylinder application: TBM thrust cylinders push the cutter head through soil or rock. Bore Ø200–Ø500 mm, stroke 1,000–2,000 mm, 350 bar. High-precision, synchronised sets.

TBM gripper and shield cylinders

TBM gripper cylinders clamp the tunnel wall to provide thrust reaction; shield cylinders steer and articulate the TBM body. Critical precision and reliability requirements.

Pipe jacking and micro-tunnelling

Long-stroke jacking cylinders for pipe jacking stations; compact cylinders for micro-TBM cutter head drives and steering. Bore Ø80–Ø300 mm.

Excavator bucket, arm, and boom cylinders

High-cycle, high-contamination cylinders for hydraulic excavator digging circuits. Heavy-duty wiper seals and robust rod coatings for longevity.

Road roller and motor grader cylinders

Cylinders for drum vibration locking, cab levelling, blade lift, blade side shift, and wheel lean on road construction machinery.

Hydraulic piling rig and rotary drill

High-force cylinders for crowd (mast feed), Kelly bar drive, and casing oscillator actuation on piling and rotary drilling rigs.

Bridge launching beam and prestress jacks

Synchronised cylinder sets for incremental bridge launching; high-force flat jacks and strand jacks for structural prestressing operations.
