Electric Furnace Cylinders

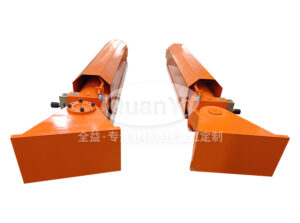

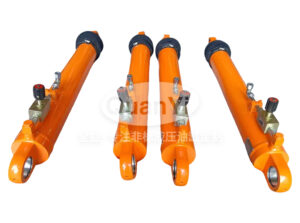

Large-bore, high-force cylinders for electric arc furnace tilting. Typically bore Ø200–Ø400 mm, stroke 500–1500 mm. FKM seals essential; radiated heat can exceed 500°C in the furnace bay.

Servo-controlled cylinders for electrode arm vertical positioning. High-cycle, precision stroke; often fitted with linear position transducers for closed-loop control.

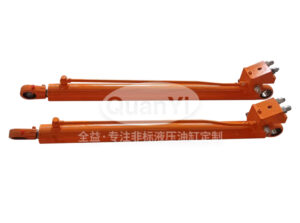

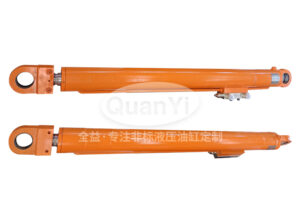

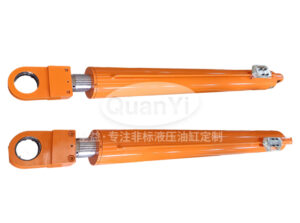

Heavy-duty cylinders for EAF roof lift and swing mechanisms. Must support the full weight of the furnace roof structure under asymmetric loads.

High-force, short-stroke cylinders for mechanical tap-hole opening and closing. Exposed to severe heat and metal spatter.

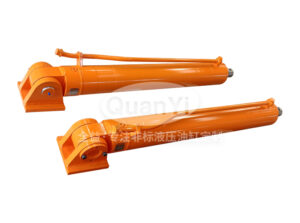

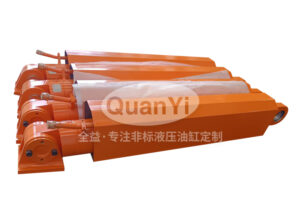

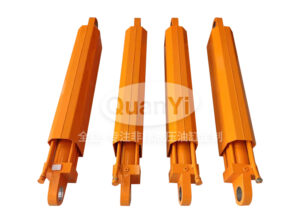

Cylinders for channel and coreless induction furnace tilting. Bore typically Ø80–Ø250 mm. Lower temperature duty than EAF but still requires FKM seals.

Cylinders for ladle refining furnace and vacuum degassing vessel tilting. Requires precise position control for safe metal transfer.

High-clamping-force cylinders for electrode column clamps. Must maintain force under high-cycle conditions without seal leakage.
