Industrial Automation Cylinders

Valve Hydraulic Cylinder

Valve Hydraulic Cy…

OEM / ODM available View Details →

Industrial Automation Cylinders

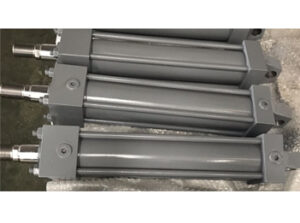

Pharmaceutical Equipment Hydraulic Cylinder

Pharmaceutical Equ…

OEM / ODM available View Details →

Industrial Automation Cylinders

Fatigue Testing Machine Hydraulic Cylinder

Fatigue Testing Ma…

OEM / ODM available View Details →

Industrial Automation Cylinders

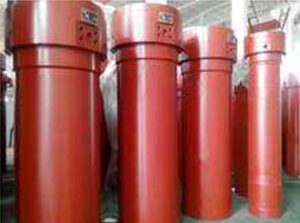

High-Frequency Hydraulic Cylinder

High-Frequency Hyd…

OEM / ODM available View Details →

Industrial Automation Cylinders

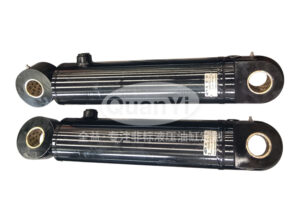

Industrial Automation Hydraulic Cylinder 100/60-305-单耳环安装 100/60-305

Industrial Automat…

OEM / ODM available View Details →

Industrial Automation Cylinders

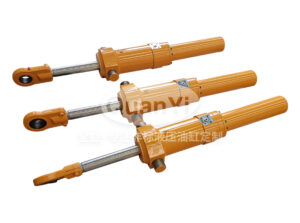

Valve Double-Rod Damping Cylinder 100-80/45-240 100-80/45-240

Valve Double-Rod D…

OEM / ODM available View Details →

Industrial Automation Cylinders

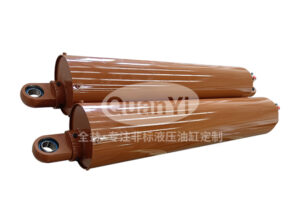

Industrial Dust Extraction Cylinder 63/45-747 63/45-747

Industrial Dust Ex…

OEM / ODM available View Details →

Industrial Automation Cylinders

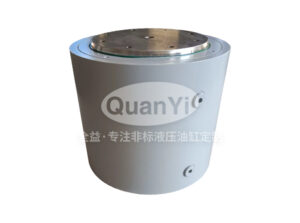

Automation Equipment Jack Cylinder 240/220-100 240/220-100

Automation Equipme…

OEM / ODM available View Details →

Industrial Automation Cylinders

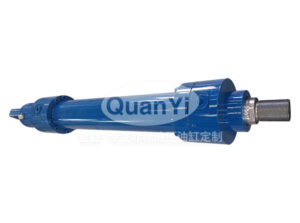

Industrial Automation Equipment Cylinder 80/56-490 80/56-490

Industrial Automat…

OEM / ODM available View Details →

Industrial Automation Cylinders

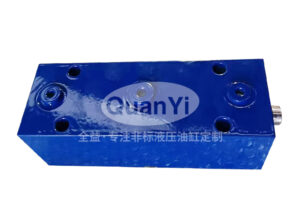

Machine Tool Double-Rod Thin Cylinder 2-32/20-60 2-32/20-60

Machine Tool Doubl…

OEM / ODM available View Details →

Industrial Automation Cylinders

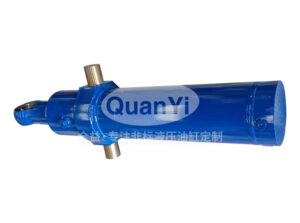

Solid-Liquid Separation Equipment Cylinder 160/80-600 160/80-600

Solid-Liquid Separ…

OEM / ODM available View Details →

Industrial Automation Cylinders

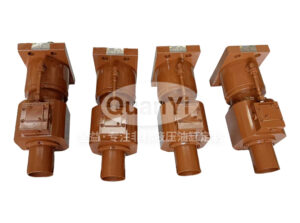

Servo Hydraulic Cylinder 100/56-100 100/56-100

Servo Hydraulic Cy…

OEM / ODM available View Details →

Industrial Automation Cylinders

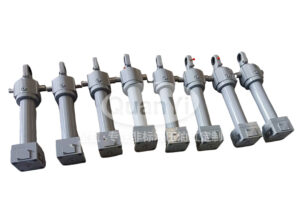

Valve Actuating Cylinder 50/28-230 50/28-230

Valve Actuating Cy…

OEM / ODM available View Details →

Industrial Automation Cylinders

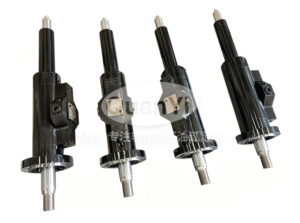

Impulse Test Bench Vibration Cylinder 65/45-150 65/45-150

Impulse Test Bench…

OEM / ODM available View Details →

Industrial Automation Cylinders

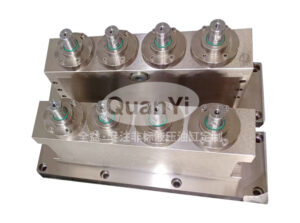

Pharmaceutical Sealing Die Quad Cylinder 40/25-110 40/25-110

Pharmaceutical Sea…

OEM / ODM available View Details →

Industrial Automation Cylinders

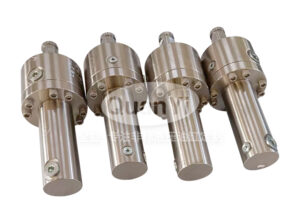

Pharmaceutical Equipment Main Mold Cylinder 63/45-100 63/45-100

Pharmaceutical Equ…

OEM / ODM available View Details →

Industrial Automation Cylinders

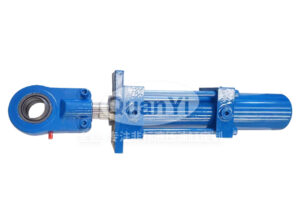

Industrial Automation Equipment Cylinder 63/36-75 63/36-75

Industrial Automat…

OEM / ODM available View Details →

Industrial Automation Cylinders

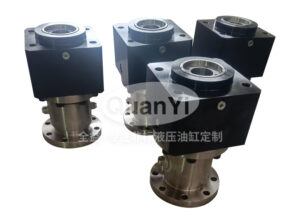

Test Bench High-Frequency Hydraulic Cylinder 105/100-150 105/100-150

Test Bench High-Fr…

OEM / ODM available View Details →

Industrial Automation Cylinders

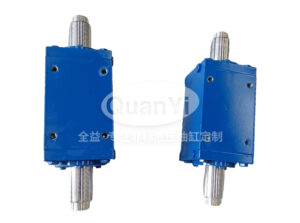

Industrial Automation Equipment Cylinder 100/45-60+60 100/45-60+60

Industrial Automat…

OEM / ODM available View Details →

Industrial Automation Hydraulic Cylinders — Servo, Clamp, Press OEM Manufacturer

Hengshui Machinery manufactures precision hydraulic cylinders for industrial automation: servo-controlled positioning systems, hydraulic clamping and fixture systems, stamping presses, injection moulding machines, transfer and assembly lines, and robotic end-effectors. Automation cylinders demand tighter dimensional tolerances, lower friction, higher positioning accuracy, and greater cycle-life consistency than many other cylinder types.

Our automation cylinders are produced to tighter bore tolerance (H7) and rod tolerance (h6 or g6) than general industrial cylinders, with special low-friction seal configurations (PTFE-backed or coated variants) for smooth servo response and minimal stick-slip. We manufacture precision bore tubes honed to Ra 0.2–0.4 µm, and offer integrated position transducer mounting provisions and magnetic piston options for reed-switch or Hall-effect position sensing.

Parameter	Specification
Bore range	Ø20 mm – Ø320 mm
Stroke range	10 mm – 3,000 mm
Working pressure	100 – 315 bar
Bore tolerance	H7 or better; honed to Ra 0.2–0.4 µm
Rod tolerance	h6 / g6; ground + hard chrome + polished
Seal type	Low-friction PTFE lip; PU for high-pressure clamping
Sensor options	Magnetic piston (reed/Hall effect); external transducer bracket
Mounting options	Flange (FF1, MF1, MF2, MF3), trunnion, foot, square head; to DIN/ISO or custom

Industrial Automation Cylinder Applications

Hydraulic clamping cylinders (fixture)

Swing-arm, block, and hollow piston clamping cylinders for precision machining fixtures. High clamping force, repeatable position, no creep under machining loads.

Stamping and blanking press cylinders

Main ram cylinders for hydraulic blanking, punching, and deep-drawing presses. High-cycle, high-force; servo pressure control for variable force profiles.

Injection moulding clamp cylinders

Tie-bar cylinders and platen movement cylinders for injection moulding machines. Bore up to Ø250 mm; high-cycle; low-friction seals for precise clamp force control.

Transfer line indexing cylinders

Precision stop-and-go indexing cylinders with integrated cushioning and end-of-stroke sensing for automated transfer line workpiece indexing.

Servo hydraulic positioning axes

Low-friction cylinders with integrated transducer mounting for closed-loop servo-hydraulic position, velocity, or force control axes.

Hydraulic press for powder compaction

Precision cylinders with extremely low friction for green compact and ceramic sintering press applications requiring precise force-displacement profiles.

Automotive assembly fixtures

Cylinders for body-in-white welding fixtures, part clamping jigs, and assembly robots in automotive manufacturing plants.

ISO 9001:2015 Certified

Wuxi, Jiangsu, China — Factory Direct

24 h Quote · MOQ 1 Piece · OEM/ODM
