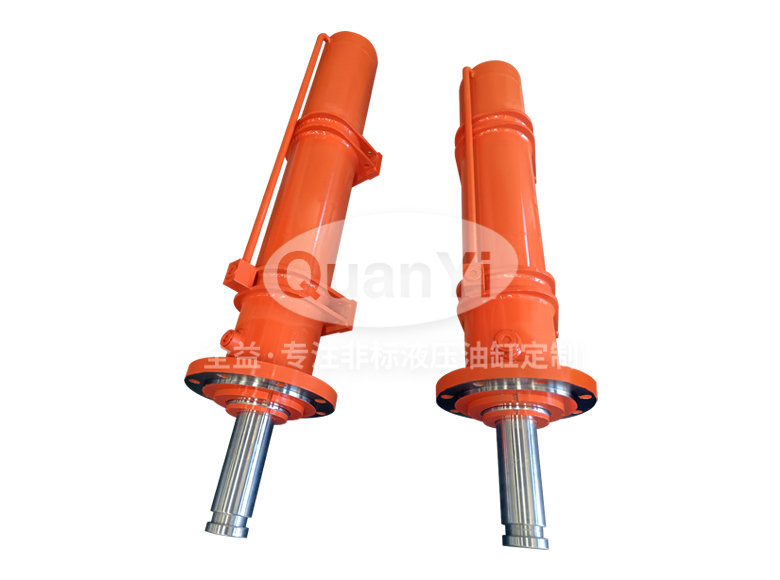

600T Pattern Stripping Machine Two-Stage Push-Pull Cylinder 180/150/125/90-1593 180/150/125/90-1593

The 600T Pattern Stripping Machine Two-Stage Push-Pull Cylinder 180/150/125/90-1593 180/150/125/90-1593 is designed for foundry and die-casting machinery, providing precise and reliable actuation for mold clamping, core setting, and part ejection functions. Available with adjustable end cushions and position sensing for integration with PLC control systems. Bore diameter Ø125mm, piston rod diameter Ø90mm, stroke 1593mm. Materials: barrel — seamless honed steel tube; piston rod — 45# or 40Cr alloy steel, induction hardened Ø0.03-0.05mm oversize then hard chrome plated to Ra≤0.4μm; seals — Parker (USA) or Merkel (Germany) standard. All cylinders are hydraulically pressure-tested before dispatch. Custom bore, stroke, mounting, port position and surface treatment available on request. Contact Hengshui export sales for technical drawings and quotation: sales@wx-hxy.com | WhatsApp +86 133 8224 8877.
