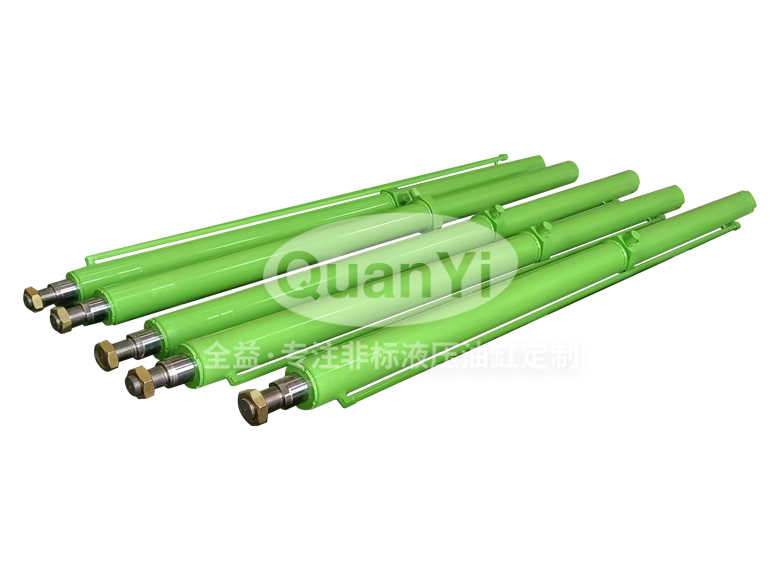

Rubber Machinery Mold Open/Close Cylinder 125/90-2810 125/90-2810

The Rubber Machinery Mold Open/Close Cylinder 125/90-2810 125/90-2810 is specifically designed for tire and rubber vulcanizing press applications. High-temperature seal materials and precision bore geometry maintain consistent clamping force throughout extended cure cycles. Available with position sensing provisions and customised port configurations. Bore diameter Ø125mm, piston rod diameter Ø90mm, stroke 2810mm. Materials: barrel — seamless honed steel tube; piston rod — 45# or 40Cr alloy steel, induction hardened Ø0.03-0.05mm oversize then hard chrome plated to Ra≤0.4μm; seals — Parker (USA) or Merkel (Germany) standard. All cylinders are hydraulically pressure-tested before dispatch. Custom bore, stroke, mounting, port position and surface treatment available on request. Contact Hengshui export sales for technical drawings and quotation: sales@wx-hxy.com | WhatsApp +86 133 8224 8877.
